Mixing and Dispersion Blades
Blades

Our blades are precision-fabricated on state-of-the-art CNC machinery.

Only high grade, heavy gauge type 304 and 316L stainless steel is used to ensure long life and dependable performance.

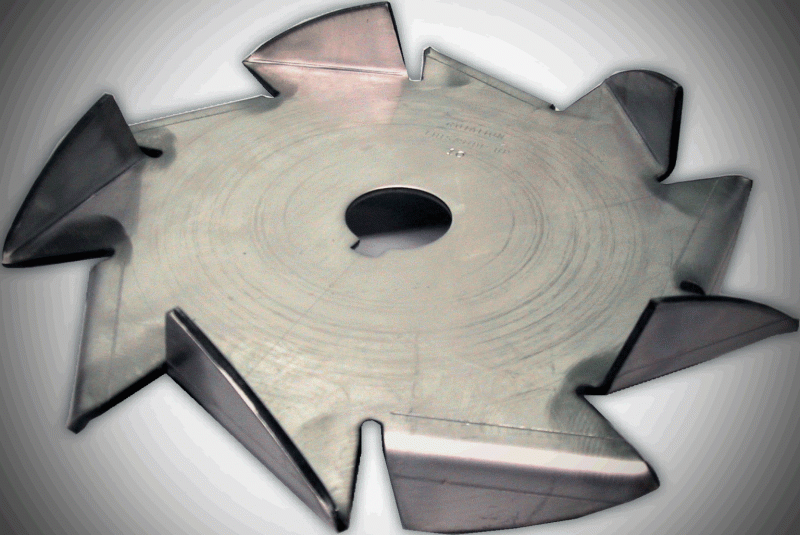

Type 1 'Standard' Blades

Our most popular blade for paint dispersion work. Also used extensively in clay processing, paper coatings and ink manufacturing. Rugged, efficient design has proven its superiority in thousands of applications. Balances high sheer dispersion with pumping action. Available in type 304 or 316-L stainless and with optional tungsten-carbide hard coating.

Available in diameters from 1" and higher

Type 2 'High Vane' Blades

High volume pumping action and radial flow promote better blending. Mixes an entire batch with minimal shear and heat buildup. Popular in the mixing and letdown of coatings. Available in type 304 or 316-L stainless and with optional tungsten-carbide hard coating.

Available in diameters from 2" and higher

Type 3 Blades

Offers a combination of high sheer along with excellent batch movement. Excels in high viscosity and high solids batches. Available in type 304 or 316-L stainless and with optional tungsten-carbide hard coating.

Available in diameters from 2" and higher

Type 4 Blades

Aggressive tooth design works well on ceramics and difficult to deagglomerate materials. Available in type 304 or 316-L stainless and with optional tungsten-carbide hard coating.

Available in diameters from 2" and higher

Type 5 'Pick' Blades

Perfect for cutting in or shredding rubber, wax and other soft materials that tend to gum up on standard impellers. Unique design features a knife (or pick) extending out from the blade, alternating with vertical teeth. Available in type 304 or 316-L stainless and with optional tungsten-carbide hard coating.

Available in diameters from 2" and higher


 Type 6 Bades

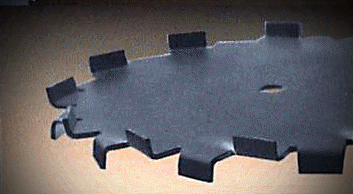

Another popular all-around blade for high-speed dispersion applications, with a rectangular tooth pattern. Available in type 304 or 316-L stainless and with
optional tungsten-carbide hard coating.

Available in diameters from 2" and higher


Type 7 Blades

Another pumper blade designed for maximum turbulent flow. It is best utilized for high-speed blending and agitation where a medium amount of sheer is required. Available in type 304 or 316-L stainless and with optional tungsten-carbide hard coating.

Available in diameters from 2" and higher

Type 8 'Poly' Blades

Made from Ultra-High-Molecular-Polyethylene for superior wear. Effective in highly abrasive applications with no metal contamination. May be turned over for added life and performance.

Available in diameters from 2" and higher


Lab Blades & Accessories

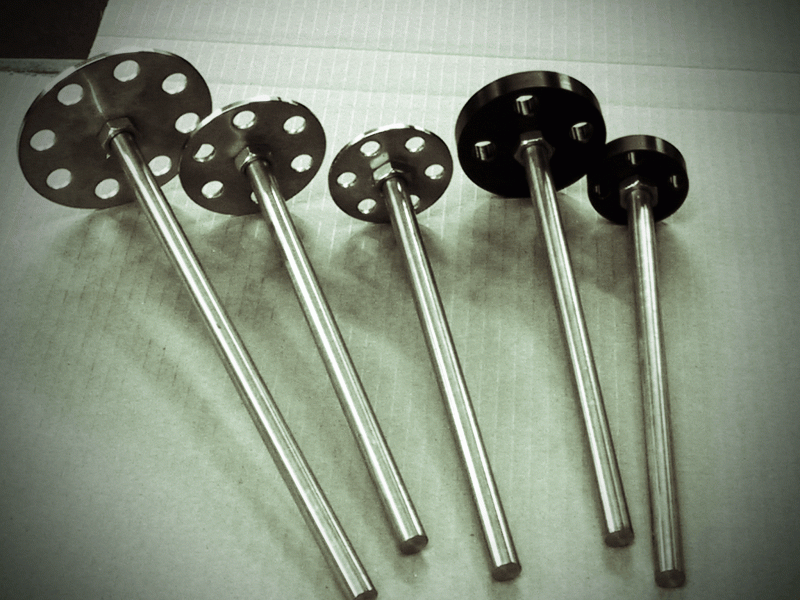

Lab Shafts: Fabricated from 3/4" diameter stainless steel with one end turned down to 1/2" for drill press mounting. Standard lengths range from 6" and up.

(Also available in diameter of 1/4", 5/16", 3/8" and 1/2" in standard lengths of up to 18")

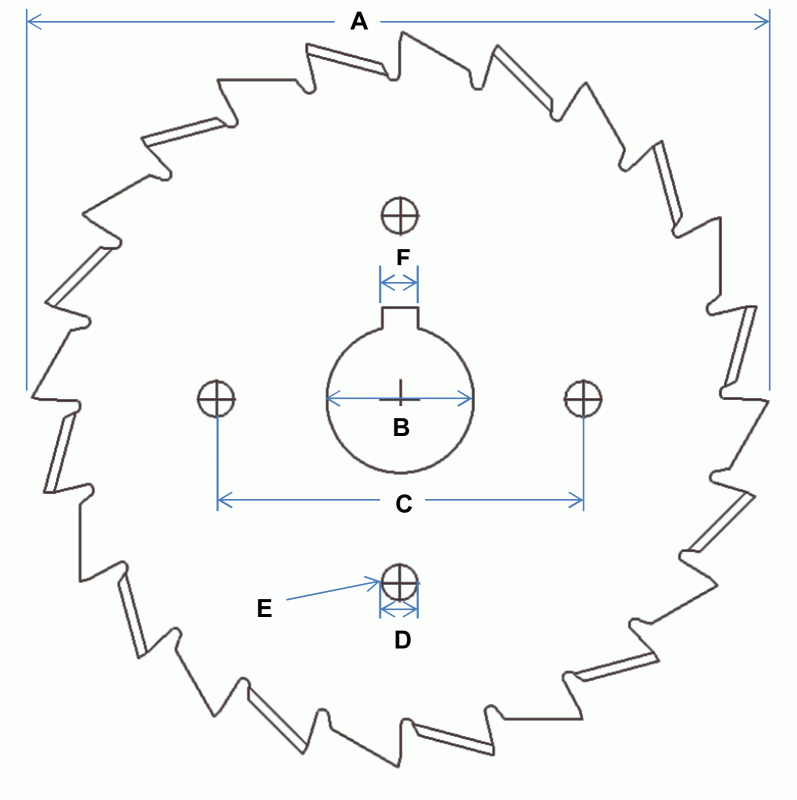

 MOUNTING HOLE CONFIGURATION

A-BLADE DIAMETER

B-CENTER HOLE DIAMETER

C-PIN/BOLT CIRCLE DIA.

D-PIN/BOLT HOLE DIA.

E-NUMBER OF HOLES

F-KEYWAY SIZE & LOCATION
